STM32C071 Dev Board
A development and prototype board designed around the STM32C071 ARM Cortex-M0+ from ST Microelectronics.
The board is designed for cost effective assembly by only using 0603 passive components and SOIC ICs with a pin pitch of 0.5 mm or more.

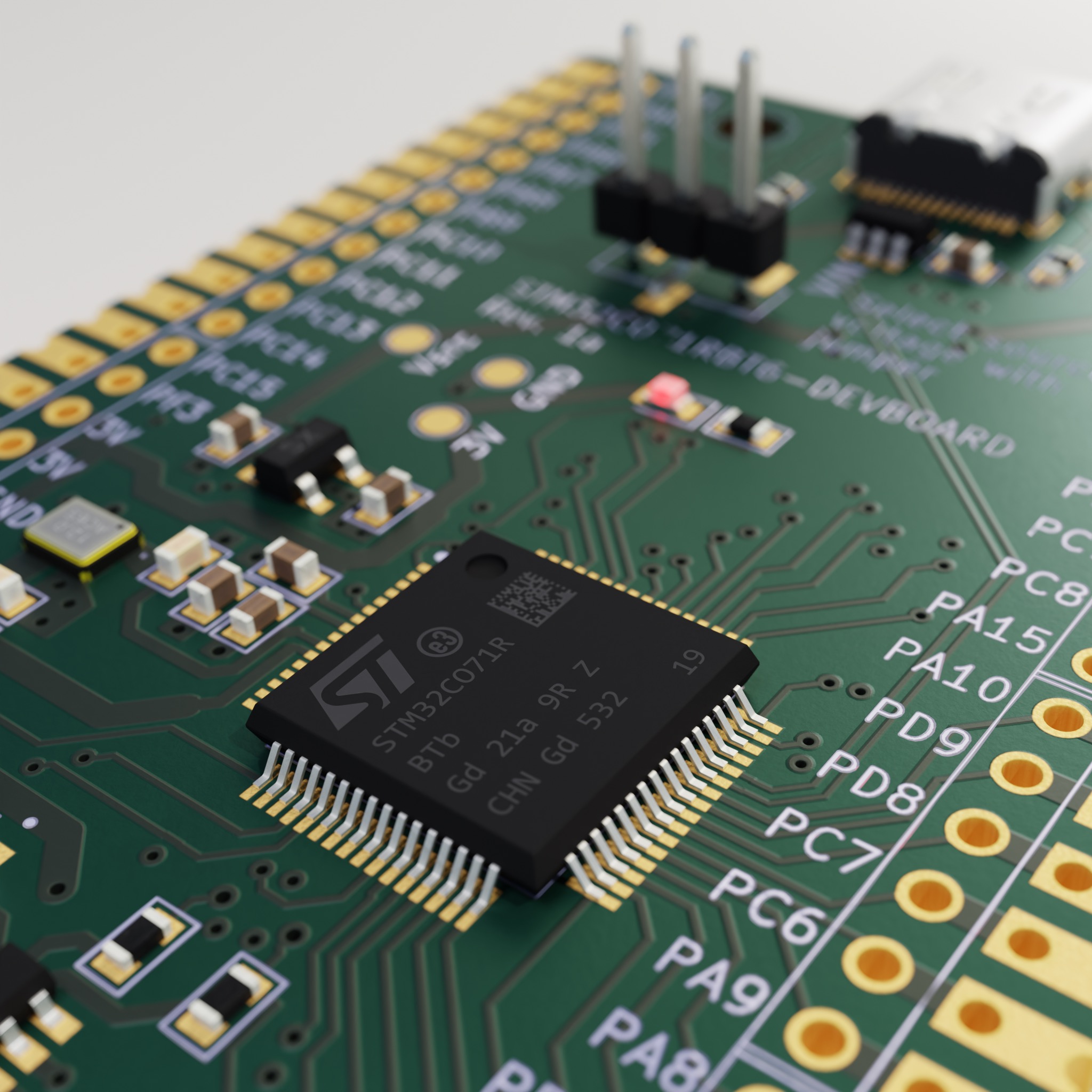

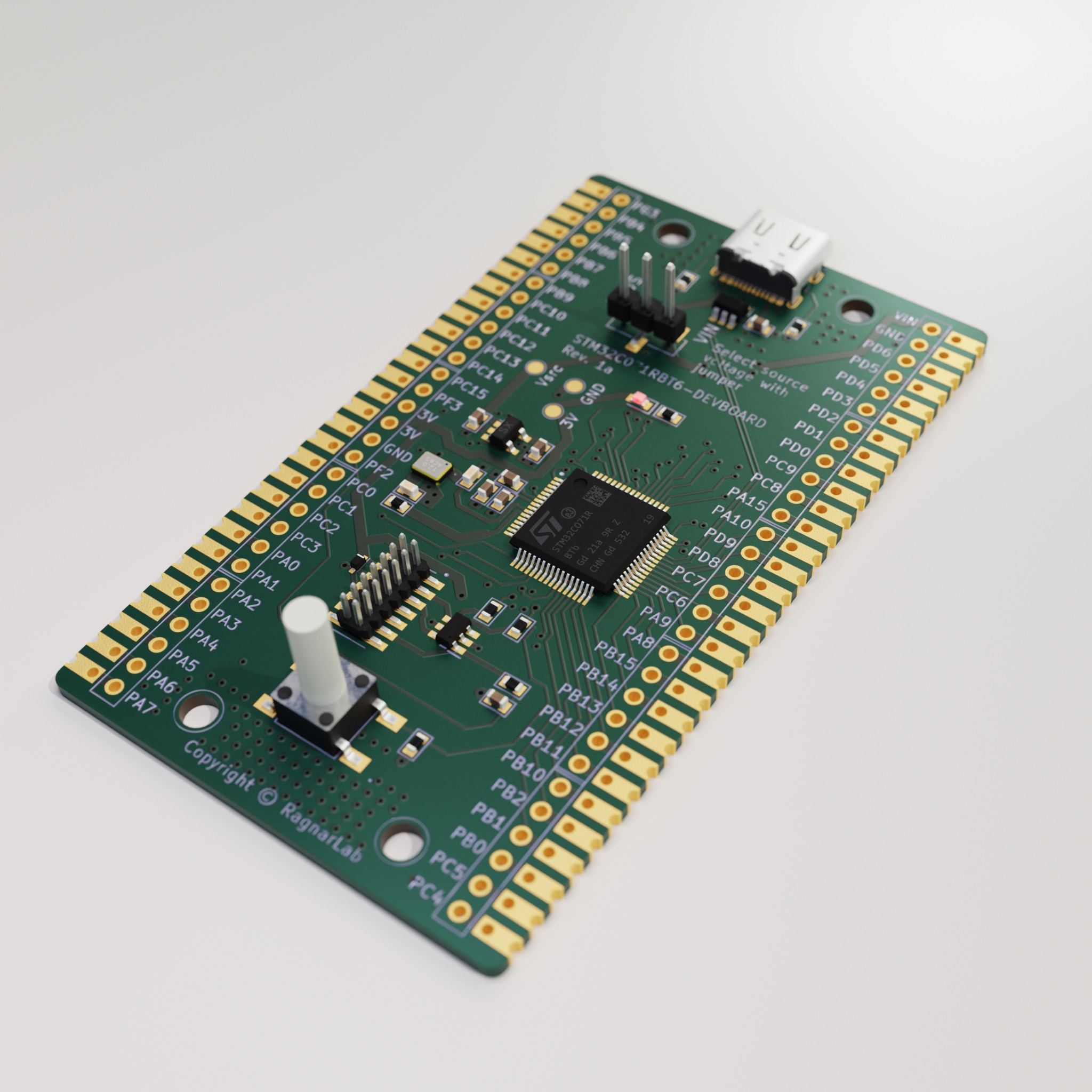

The MCU is an STM32C071RBT6, specifically the LQFP64 package with 64 pins and therefore plenty of I/O. The I/O is exposed either via standard 2.54 mm (100 mil) pitch through-hole headers, or the PCB can be soldered directly to another board using the castellated holes.
The PCB was designed in KiCad 9.
Board Statistics
- Layers: 4
- Manufacturer: Aisler
- Components: 47
- Width: 45.72 mm (1.8 in)
- Height: 78.74 mm (3.1 in)
